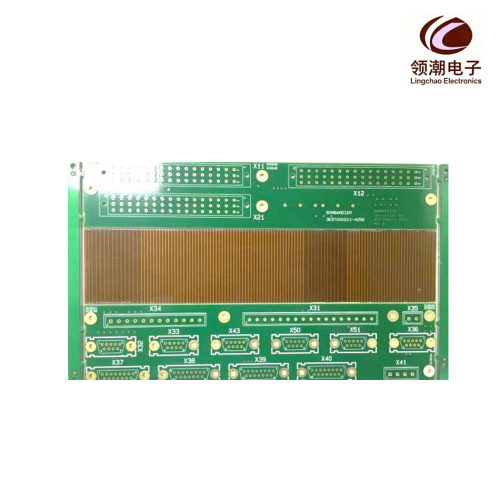

6Layer Rigid-Flex PCB for HighSpeed Train Display

6-Layer Rigid-Flex PCB for High-Speed Train Display: Engineered for Extreme Reliability in Motion

Meet the ultimate circuit solution built to withstand the rigorous demands of high-speed rail systems – our 6-layer rigid-flex PCB delivers uncompromising performance for critical train display applications. Designed to power passenger information systems, cockpit displays, and entertainment consoles, this advanced board combines structural stability with strategic flexibility to resist constant vibration, temperature fluctuations, and mechanical stress experienced at 300+ km/h speeds.

Crafted with premium materials and six-layer stack-up technology, this PCB ensures flawless signal transmission for high-resolution screens while minimizing EMI in electrically noisy environments. The rigid sections provide robust mounting for processors and connectors, while the flexible segments absorb shocks and simplify installation in cramped compartments. Each board undergoes stringent testing for thermal cycling (-40°C to +125°C), vibration resistance, and extended lifespan under continuous operation.

Compliant with railway standards EN 50155 and IEC 61373, this solution features:

• Enhanced copper bonding for superior mechanical endurance

• Separate layers for power, ground and high-speed signals

• Customizable stiffeners for specific mounting requirements
